Gretchen C. Foley*The Efficacy of KNets in Perlean Theory

REFERENCE: Michael Buchler, “Reconsidering Klumpenhouwer Networks,” Music Theory Online 13.2
Received July 2007
[1] This response addresses two topics in Michael Buchler’s article “Reconsidering Klumpenhouwer Networks,” namely relational abundance and the issue of hierarchy and recursion. In the abstract preceding his essay Buchler states that “Knets also enable us to relate sets and networks that are neither transpositionally nor inversionally equivalent, but this is another doubleedged sword: as nice as it is to associate similar sets that are not simple canonical transforms of one another, the manner in which Knets accomplish this arguably lifts the lid off a Pandora’s Box of relational permissiveness.” I will confine my remarks to Knets and their applicability to George Perle’s compositional theory of twelvetone tonality. In so doing, I hope to demonstrate that not only are Knets “nice” to use in associating similar sets, they are highly efficient tools in a Perlean context.
Knets and Cyclic Sets
[2] In order to establish the efficacy of Knets in Perlean theory, we must first define cyclic sets, arrays, and axisdyad chords. A cyclic set combines two inversionally related interval cycles, such as interval 7 and interval 5. When the members of the two cycles are placed in alternation, every pair of alternating pcs shows a consistent difference, representing the formative interval cycle. In Figure 1 the pcs in open noteheads show the cyclic interval 7, and the alternating pcs in closed noteheads show the inversionally related cycle 5.

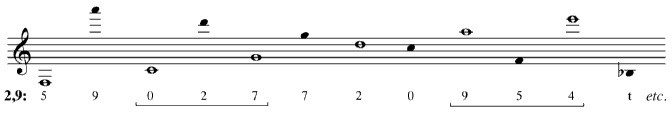

Figure 1. Cyclic set 2,9 generated by alternating inversionally related interval cycles 7 and 5
Additionally, every pair of adjacent pcs forms a sum. Three adjacent pcs form two socalled tonic sums, which repeat throughout the cyclic set. In Figure 1 the three bracketed pcs 027 yield the tonic sums 2 and 9, which repeat with every trichordal segment. The second bracketed pcs 954 also sum to 2 and 9. The recurring pair of tonic sums provides the cyclic set its name; the cyclic set in Figure 1 is thus identified as 2,9. Finally, the difference between the tonic sums provides the underlying interval cycle (92=7).
[3] The trichordal segments in Figure 1 belong to two different set classes, 39 (027) and 34 (015). As such, they are neither transpositionally nor inversionally equivalent. Yet a declaration of nonequivalence seems counterintuitive, since both sets derive from the same symmetrical cyclic set and thus share the same internal structure. The Knets in Figure 2a clearly display this relationship. These networks are strongly isographic; that is, they have identical arrow configurations and associated T and I transformations. Moreover, all trichords in the 2,9 cyclic set are strongly isographic since they arise from the same source, the 2,9 cyclic set. Any three adjacent pcs from this set can be fitted into the nodes of the more abstract Kgraph in Figure 2b. This Kgraph efficiently displays the recursion inherent in the 2,9 cyclic set.

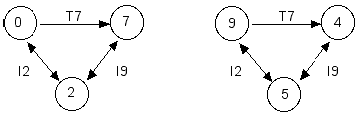

Figure 2a. Strongly isographic Knets of trichordal
segments of cyclic set 2,9

Figure 2b. Kgraph of any trichordal segment of cyclic
set 2,9

[4] A different alignment of the ascending and descending interval 7 cycles from Figure 1 produces a new pair of repeating tonic sums, as shown in the 0,7 cyclic set of Figure 3.
Figure 3. Cyclic set 0,7 generated by rotating cyclic set 2,9
Although all trichordal segments within this cyclic set will be strongly isographic, they will not share this relationship with trichordal segments from the 2,9 cyclic set of Figure 1. Instead, the bracketed segments drawn from the two cyclic sets are positively isographic; that is, they share identical Tvalues between corresponding nodes but a consistent difference between their Ivalues, as shown in Figure 4. In these two Kgraphs the identical Tvalues represent the interval 7 cycle underlying both cyclic sets, while the difference of ten (t) in both of their corresponding Ivalues represents the difference between the tonic sums in the two cyclic sets. This difference results from rotating the upper interval cycle ten times clockwise (or two times counterclockwise) from the original alignment in Figure 1, and is expressed as <Tt>.

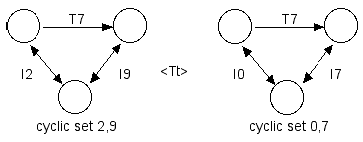

Figure 4. Positively isographic Kgraphs of trichordal segments of Perle cycles 2,9 and 0,7
[5] Buchler opines that “If two trichords ... share even a single interval class, they can be shaped into a pair of isographic networks, and that isography can (willynilly) be construed as either positive or negative” [paragraph 33]. I contend, however, that these Kgraphs exhibit the specific and recursive relationships between the two cyclic sets and all their trichordal segments more succinctly and completely than any other analytical vehicle presently available.
Knets, Arrays, and Axisdyad Chords
[6] Any two cyclic sets in a vertical alignment create an array, which takes its name from the combined cyclic sets. Figure 5a shows the array 2,9/0,7 formed from the cyclic sets discussed above, with the array’s corresponding Knet in Figure 5b. Just as the interval cycles within a cyclic set may rotate in relation to one another, the cyclic sets within the larger array may also rotate, creating a variety of alignments. The Knet in Figure 5b demonstrates the types of relationships among tonic sums. The linear pairs comprise the tonic sums of the cyclic sets. The vertical pairs represent relationships between the tonic sums of the cyclic sets in a difference alignment (wherein cycles of like aspect, ascending or descending, are aligned). The diagonal pairs show relationships between the tonic sums of the cyclic sets in a sum alignment (wherein cycles of opposite aspect, ascending with descending, are aligned).

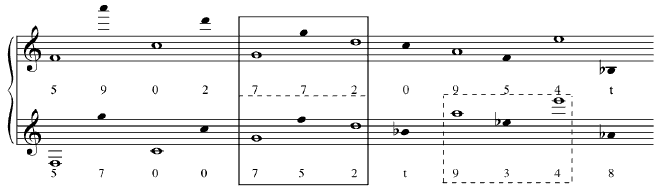

Figure 5a. Array 2,9/0,7, formed from cyclic sets 2,9 and
0,7

Figure 5b. Knet of array
2,9/0,7 (TS = tonic sum)

[7] The array in its various alignments provides the resources for melodic and harmonic material in a Perlean composition. A hexachordal collection known as an axisdyad chord is the main unit segmented from an array, and is formed by combining trichords from each of the cyclic sets. Figure 5a displays one segment, comprised of trichords 772 and 752. If the 0,7 cyclic set were rotated eight times clockwise (or four times counterclockwise), the resulting axisdyad chord would contain trichords 772 and 934. Perle regards multiple appearances of a pc within a segment as independent elements. Since any collection may include pc duplication, therefore, the hexachordal axisdyad chord may contain less than six distinct elements. [8] All axisdyad chords segmented from the same array are isomorphic. Due to the symmetrical nature of the array, chords generated from an evennumbered rotation of the cyclic sets within the array (where the aspect of the aligned cyclic sets is retained) are also isomorphic. In the axisdyad chord’s Kgraph in Figure 6 the dotted lines connecting the nodes in the upper and lower trichords indicate the variable status of the two cyclic sets of the array in relation to one another.
Figure 6. Kgraph of all axisdyad chords from even rotations of the cyclic sets in array 2,9/0,7

Knets and Array Equivalence
[9] Arrays share equivalence relationships through transposition and inversion. Transposing an array entails adding a constant even or odd integer x to each pc in both cyclic sets, thereby resulting in a constant even integer, 2x, added to each of the array’s tonic sums. (Adding a constant odd integer to each tonic sum constitutes
semitransposition, since the pcs themselves could not be transposed by the same constant value.) For example, transposing each pc in the cyclic sets of array 2,9/0,7 by T3 results in the array 8,3/6,1, whose tonic sums relate to the first array by T6. Although this relationship can be expressed in a single line as T6 (2,9/0,7) = 8,3/6,1, an approach favored by Buchler, this equation in its simplicity omits important information. First, it is not obvious in this equation that the integers being transposed are not pcs, but sums of pcs. In addition, other facts must be gleaned from the equation: the cyclic sets’ intervals remain constant, as do the relationships among the corresponding tonic sums between the cyclic sets. This consistency of relationships produces a strong isography among transposed arrays. Transposing an array affects multiple relationships of pcs, sums, and intervals, which to my mind are represented much more accurately, clearly, and completely through Knets, as shown in Figure 7a. In addition, the Kgraph of Figure 7b captures the recursive structure of all arrays transpositionally related to 2,9/0,7 built on cycles of interval 7, as well as their component elements.

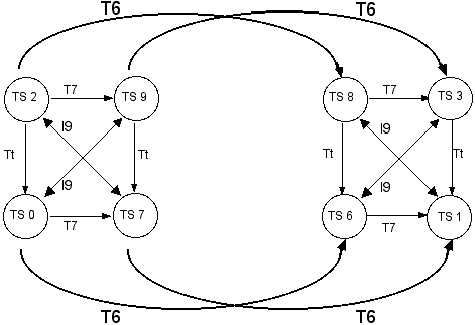

Figure 7a. T6 relationship
between two arrays represented in Knets

Figure 7b. Kgraph of all
transpositions of array 2,9/0,7

[10] As with transposition, array inversion begins with the pcs of the cyclic sets, each of which is inverted by a constant even or odd value. Consequently, the corresponding tonic sums between the two arrays will sum to the same even value. (Those tonic sums that add up to an odd integer constitute semiinversion, where the component pcs were not inverted by the same value.) Further, the inverted array’s cyclic intervals are not retained, but transform into complementary cycles.
[11] An I2 inversion of an array could be represented simply as I2 (2,9/0,7) = 0,5/2,7. But as described above, additional significant relationships between the corresponding cyclic intervals and tonic sums are not apparent in this equation. These relationships are included as an integral part of the Knets in Figure 8a, just as they are in the arrays themselves. These particular Knets are negatively isographic, which means that the corresponding Tvalues are complementary while the Ivalues add up to the same sum. The “negative isography” designation troubles Buchler, yet, in this context, is in no way at odds with Perle’s original conception of inversionallyrelated arrays; rather, it faithfully expresses their manifold relationships. This particular type of relationship obtains for all such arrays inverted by a consistent value, as indicated in Figure 8b’s Kgraph of recursive structure of I2related arrays.

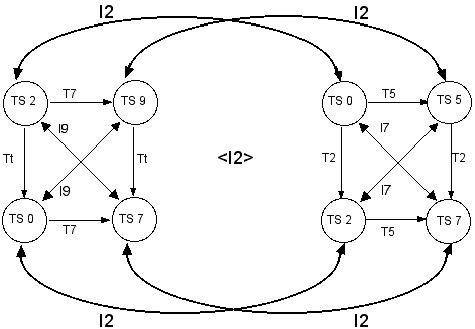

Figure 8a. I2 relationship
between two arrays represented in Knets

Figure 8b. Kgraph of all
inversions of array 2,9/0,7

[12] All of the above notwithstanding, I do share several of Buchler’s concerns about Knets, most especially the ease with which an analyst can manipulate Knets to “show” whatever the analyst wishes, whether or not they are a true reflection of the musical surface. But in basing my work on Perle’s music on Perle’s own compositional theory, no other tools have proven to be more effective than Knets in representing the myriad, contextual relationships.
[13] Although I have confined my response to the most fundamental aspects of Perle’s method, it should be known that twelvetone tonality itself is a hierarchical system, with arrays constituting the first “level” of structure.^{(1)} Buchler rightly points out that Knet recursion shows relational structures rather pitch or pc recursion, in contrast to Schenkerian middleground and background levels, which do retain notes from foreground events. Nonetheless, I disagree with Buchler’s assertion that Knet hierarchies cannot yield the same degree of consistency. In a Schenkerian analysis, notes retained from surface levels may change in function at deeper levels, depending on the context. In the Kgraphs generated for this article, it is true that notes were removed to show recursion, but the corresponding relationships remained constant. I contend that Knet hierarchies can indeed portray a high level of consistency. The crucial difference here is the entities retained at each level of hierarchy, notes versus relationships.
[14] One final point to address concerns Buchler’s assertion: “And, of course, all chords need to contain the same number of notes or else some notes need to be duplicated within a surface Knet, since no one has yet suggested a way of relating different sizes of networks” [paragraph 65]. On the contrary, I addressed this very issue in a paper delivered at the 2005 meeting of the Society for Music Theory.^{(2)} Using successions of Knets with four
and five nodes, I modeled tetrachordal and pentachordal segments naturally occurring throughout Perle’s song “There Came a Wind Like a Bugle” thereby relating unordered segments from the musical surface to the underlying, precompositional array. As a rejoinder to Buchler’s concluding statement that he “just wants to be certain that [his] analytical tools help [him] elucidate more complexities than they introduce” I can say with confidence that in the specific situation of Perlean analysis, Knets are the most appropriate and efficient tools I’ve used to date.
Gretchen C. Foley
University of NebraskaLincoln
gfoley@unlnotes.unl.edu
References
1. For a detailed explanation of these hierarchical levels the reader may refer to George Perle,
TwelveTone Tonality, 2nd ed. (Berkeley: University of California Press, 1996) or Gretchen Foley “Pitch and Interval Structures in George Perle’s Theory of TwelveTone Tonality” (Ph.D. diss., University of Western Ontario, 1999).
Return to text
2. A revised version of this presentation will be available in the upcoming issue of
Theory and Practice as Gretchen C. Foley, “Sum Squares and Pentagrams: Two New Tools for Perlean Analysis” (Theory and Practice 32, 2007).
Return to text
