Genus, Species and Mode in Vicentino’s 31-tone Compositional Theory

Jonathan Wild



KEYWORDS: Vicentino, enharmonicism, chromaticism, sixteenth century, tuning, genus, species, mode

ABSTRACT: This article explores the pitch structures developed by Nicola Vicentino in his 1555 treatise L’Antica musica ridotta alla moderna prattica. I examine the rationale for his background gamut of 31 pitch classes, and document the relationships among his accounts of the genera, species, and modes, and between his and earlier accounts. Specially recorded and retuned audio examples illustrate some of the surviving enharmonic and chromatic musical passages.

PDF text | PDF examples
Received February 2014
Volume 20, Number 2, June 2014
Copyright © 2014 Society for Music Theory


Table of Contents


Introduction

[1] In his treatise of 1555, L’Antica musica ridotta alla moderna prattica (henceforth L’Antica musica), the theorist and composer Nicola Vicentino describes a tuning system comprising thirty-one tones to the octave, and presents several excerpts from compositions intended to be sung in that tuning.(1) The rich compositional theory he develops in the treatise, in concert with the few surviving musical passages, offers a tantalizing glimpse of an alternative pathway for musical development, one whose radically augmented pitch materials make possible a vast range of novel melodic gestures and harmonic successions. In this article I begin with an acoustic derivation of the 31-tone scale, a derivation that is not entirely explicit in L’Antica musica. I go on to examine the aesthetic rationales Vicentino proposes for his tuning system, and to investigate, through close reading of the treatise, the modal and generic frameworks that he develops within it, while considering their historical antecedents. Finally I consider to what extent these pre-compositional pitch structures are realized in the surviving compositions by performing some preliminary analysis on the works excerpted in the treatise. I shall not attempt an exhaustive account of Vicentino’s advice for composers, which encompasses rhetoric, text setting, and affect; my focus will remain on the novel pitch structures his theories generate.

[2] One difficulty in working with a repertoire such as this is the inability of the modern musician to recreate, mentally or in performance, the sound and affect of the unfamiliar intervals from the enharmonic genus. In my own experience I found I needed to hear what Vicentino intended before fully grasping what was at stake in his theorizing or appreciating the import of the musical possibilities. Renderings accomplished via synthesis remained musically unsatisfying. And so with the help of my colleague Peter Schubert I have created aural illustrations of the musical examples by retuning, in post-production, specially recorded performances by professional singers to match precisely the intonational stipulations in L’Antica musica.(2) Some of these recordings appear as audio examples in this article.

[3] I reserve for a follow-up article to this one, to be published separately, a more thorough analysis of the surviving compositions, not restricting myself to the theoretical approaches suggested by Vicentino’s own writings in L’Antica musica. Additionally, in this second article I shall venture beyond Vicentino’s compositions and investigate the results of applying the practices demonstrated in his enharmonic works to some carefully selected music by a near-contemporary, Luzzasco Luzzaschi.

Tuning

[4] As was well known by Vicentino’s lifetime, the compound major 3rd derived by stacking four perfect 5ths is too wide when compared to the major 3rd of just intonation, now known to be derived from the harmonic series. The discrepancy between the two, 21.506 cents, is the syntonic comma.(3) For keyboard instruments the practical solution to the incommensurability of 5ths and 3rds, if pure major 3rds were desired, was to narrow each perfect 5th by a small amount—one quarter of the syntonic comma—causing a stack of four 5ths to yield a pure major 3rd. The resulting temperament is called ¼-comma meantone—or often simply meantone—due to the size of its whole tone, which is the mean of the 9:8 and 10:9 whole tones first described in Ptolemy’s syntonic diatonic and proposed in several earlier sixteenth-century treatises.(4)

[5] If this temperament is extended to a chain of 12 pitches, all related by meantone 5ths of 696.578 cents, some pitches near the ends of the chain will not be suitable as triadic roots, since the triad’s third or fifth, or both, will be noticeably mistuned. As an example, if the chain runs from E at its flatmost to G at its sharpmost—the most common arrangement—then B major is one such mistuned triad, as only an E is available, and not the correct D. If the chain is extended sharpwards by one 5th, then both pitches, E and D, may be present simultaneously, and keyboard instruments that employed split keys such as D/E were not uncommon in Italy in the sixteenth century.(5) Such an instrument, accommodating more than twelve pitches per octave, augments the usable tonal region so as to encompass more remote keys.

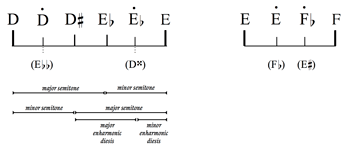

Figure 1. Intervallic makeup of the whole tone and the diatonic semitone in Vicentino’s 31-tone system

Figure 1 thumbnail

(click to enlarge)

[6] The tuning system Vicentino intended for his vocal compositions is founded on a fortuitous coincidence: in ¼-comma meantone temperament, the discrepancy between the pitches D and E (or any other pair that are enharmonically equivalent in 12-tone equal temperament—i.e., any pair lying twelve steps distant from one another in a chain of perfect 5ths) is almost exactly one fifth of the whole tone; the two pitches lie respectively two fifths and three fifths of a tone above D.(6) This suggests the possibility of interposing additional pitches, at one fifth and at four fifths of a tone above D, so as to divide the whole tone into five equal parts. The pitch midway between D and D is notated in Vicentino’s musical examples as a D with a dot above the notehead; the dot indicates a raise in pitch of a fifth-tone. In the present article I use a convention adapted from this musical notation and write a superscript dot above the letter-name for these inflected pitches, thus: Ḋ. The remaining pitch, between E and E, is notated as Ė.(7) Figure 1 illustrates the resulting complete subdivision of the D–E whole tone and shows the correspondence of the dotted pitches to their less exotic double-flat and double-sharp equivalents.(8) The chromatic semitones D–D and E–E are each two fifth-tones in size, and the diatonic semitones D–E and D–E span three fifth-tones. It follows that the natural diatonic semitones E–F and B–C must also span three fifth-tones (the subdivision of E–F is also shown in Figure 1). Thus the octave, which the diatonic scale dissects into five whole tones and two diatonic semitones, ends up comprising 31 steps: 5×5 + 2×3 = 31.(9) Vicentino identifies the step size of this 31-fold division of the octave with the smallest steps of the Greek enharmonic genus, leading to its appellation of enharmonic diesis.(10)

[7] The preceding paragraph gave one derivation for the 31-fold division of the octave, beginning with the near correspondence of the enharmonic diesis to one fifth of a meantone whole tone. But we can make use of a different principle, that of the quasi-closed cycle of 5ths, to reach the same result. A set of twelve pitches generated by iterating meantone-tempered 5ths does not “wrap around” with a usable 5th: the interval between the end of the chain and its beginning, a so-called “wolf 5th,” is too wide at about 737 cents. If we search for longer chains, generated by iterating the meantone 5th more than twelve times, that also wrap around with a 5th-like interval, we shall find that after 19 pitches a narrow wolf 5th of about 661 cents is left over. Concatenating the two chains, we find that the opposite errors of the 12-note and 19-note chains neatly cancel out, and the 31-note chain of meantone 5ths results in a very nearly closed cycle with a wrap-around 5th of 702.65 cents—not what we would typically call a wolf, as it is considerably closer to a pure 5th (701.955 cents) than is the meantone 5th used to generate the rest of the cycle! (11)

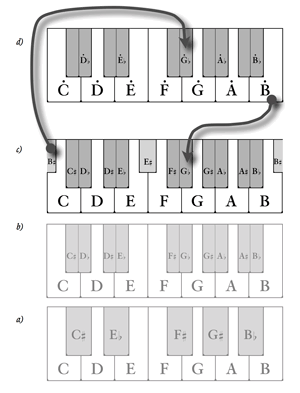

Figure 2. An octave span of the two manuals of the archicembalo

Figure 2 thumbnail

(click to enlarge)

[8] To within the small errors discussed in note 10, then, Vicentino’s system circulates; that is, a complete circle of 31 keys may be traversed without encountering any unusable, out-of-tune triads. He writes of the archicembalo—the special harpsichord he invented, which includes all 31 pitches in each octave—that it is “the foremost and perfect instrument, in that none of the keys lacks any consonances” (315).(12) While Vicentino thus recognizes the circulating nature of an entire 31-tone system, this does not seem to have been his foremost rationale for proposing it. In the surviving musical excerpts he never uses triads or keys from opposite ends of the 31-tone chain of 5ths in close proximity to one another, and so the tuning does not need to circulate and no potential “wolf” intervals arise. This renders moot the question of whether he intended his 31-tone tuning to be exactly equal, or merely to yield a good approximation of equality.(13)

The Archicembalo

[8] The archicembalo as it is described in L’Antica musica has 36 pitches per octave spread across two manuals, the lower with 19 keys per octave and the upper with 17.(14) The lower manual includes the common meantone gamut (E to G) on 12 of its keys (Figure 2a), the alternate accidental pitches D, D, G, A, A on the split black keys (Figure 2b), and new keys inserted between B–C and E–F tuned as B and E (Figure 2c); in Vicentino’s writing these last two are usually designated Ċ and Ḟ respectively. The meantone gamut on the lower manual is thereby extended to the range GB. The upper manual includes on its white keys the natural notes inflected by an enharmonic dot, and on one side of the split accidental keys the flats inflected by an enharmonic dot, giving a 12-note portion of the meantone gamut running from Ġ to Ḃ, which completes the 31-tone system (Figure 2d).(15) The links between manuals in the circle of 5ths are obscured by the dot notation; in fact, G on the lower manual is a perfect 5th above Ḃ (=C) on the upper manual, and Ġ (=Fdouble-sharp) on the upper manual is a perfect 5th above B on the lower manual, closing the circle.

[9] The remaining five black keys on the upper manual of the archicembalo (not labeled in Figure 2 as they do not play a part in the present discussion) are tuned as pure 3:2 5ths, rather than meantone 5ths, above the lower-manual pitches F, G, B, C, and D. They are thus a quarter-comma sharper than the corresponding pitches C, D, F, G, and A on the white notes of the lower manual, permitting purely tuned major triads on F, G, B, C, and D, played with root and third on the lower manual and fifth on the upper.(16) These ¼-comma-inflected pitches do not belong to the 31-tone gamut; when accompanying singers, Vicentino may or may not have substituted them for the tempered pitches, but nowhere in the surviving compositions does he use the notation for these pitches that is prescribed in L’Antica musica: a comma placed above the note head.

Genus

[10] Some of the intervals belonging to the genera of antiquity, transmitted to Vicentino’s time principally through Boethius, would have been unfamiliar to many musicians in sixteenth-century Italy.(17) One of Vicentino’s aims in L’Antica musica was to reacquaint contemporary listeners with intervals like the enharmonic diesis, the smallest step of the enharmonic genus. In so doing not only would he increase the variety of intervals available to composers—in itself a beneficial outcome, in his view—but the smaller intervals introduced would also have the desirable attribute of unfamiliarity. Thus he hoped to make it possible for composers to recreate the powerful effects on listeners that were claimed in the accounts of Greek antiquity.

[11] On intervallic variety in composition and its potential for moving the listener, he writes: “Compared to the ancient ratios, ours are not only more numerous but more sonorous. But why, then, in our times do we not observe musicians producing those effects that authors claim were made in antiquity?” (20). Another reason for composers to seek variety is given in Chapter 2 of Book I on Music Practice; after discussing the differing degrees of musical experience a listener might have, Vicentino writes: “Because of the great diversity between the hearing of one person and that of another, composers must create as much diversity in their compositions as there are listeners’ opinions if they want to satisfy all judgments based on the sense of hearing” (21–22). On the importance of novelty for producing an effect on listeners he writes that the reason for the diminished effects of modern music “is the overabundance and profusion of music today. However good an impression these effects may make, they no longer move people as they did when they were first discovered. For novelty, insignificant though it may be, earns much more admiration than what is commonplace and later magnified” (20). Both principles, variety and novelty, are constant themes in his writing on compositional aesthetics, and can be seen as primary reasons for his espousal of the genera of antiquity and the expanded gamut of 31 pitches.

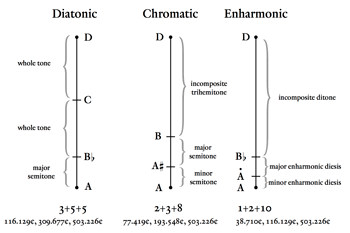

Figure 3. The three genera as they are embedded in Vicentino’s 31-tone tuning

Figure 3 thumbnail

(click to enlarge)

Figure 4. The subdivision of a natural whole tone proper to the enharmonic genus

Figure 4 thumbnail

(click to enlarge)

[12] Figure 3 depicts the three genera as they are embedded in Vicentino’s scale and labels the intervals according to his terminology. A perfect 4th spans 13 scale steps in the 31-tone system, and it may be divided as 3+5+5 (diatonic genus), 2+3+8 (chromatic genus), or 1+2+10 (enharmonic genus).(18) Among ancient sources, Vicentino’s particular shadings of the genera come closest to Ptolemy’s—not surprising, as Ptolemy’s divisions favor the 5:4 major 3rd of just intonation, which is accurately represented in ¼-comma meantone.(19)

Enharmonic division of the whole tone

[13] Chapters 5 and 11 of Book I on Musical Practice prove valuable in deciphering certain decisions later in the treatise. In these two sections, Vicentino illustrates how the natural whole tone should be divided in the enharmonic genus.(20) While Figure 1 above showed the underlying division of the whole tone into five parts, all of them minor dieses, Vicentino explains that it is characteristic of the enharmonic to include one major diesis as part of the division of the whole tone, yielding four unequal parts. Figure 4 shows the two admissible divisions of the G–A whole tone according to this “four-fold rule”: both ascending and descending, the whole tone is divided into a major and minor semitone by using either a flat or a sharp pitch in the central position, at the composer’s choice. The two semitones produced must then each be divided into two dieses by inserting enharmonically inflected pitches, one adjacent to each of the natural notes. The minor semitone is consequently found to comprise two minor dieses, while the major semitone comprises one minor and one major diesis, with the minor diesis abutting the natural note.(21) Each of the two permissible divisions in Figure 4 therefore includes Ġ and Ȧ, plus one or the other of G and A; in none of the explanatory figures in L’Antica musica do we find within the division of a natural whole tone both members of a pair like G and A, i.e., one sharp and the other flat separated only by a minor diesis—even in the 4ths and 5ths formed by “unruly” combinations of genera and species (Book III, Chap. 48).(22)

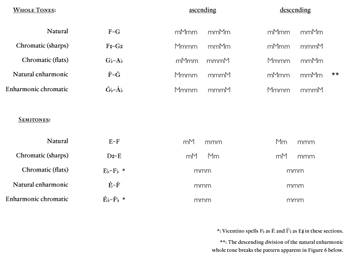

Figure 5. Chart of enharmonic subdivision schemes for whole tones and semitones

Figure 5 thumbnail

(click to enlarge)

Figure 6. Chart depicting admissible divisions of different kinds of whole tone

Figure 6 thumbnail

(click to enlarge)

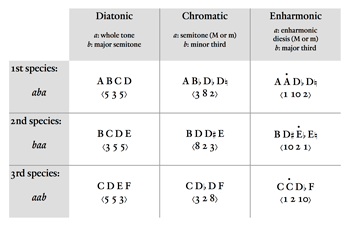

Figure 7. The three species of 4th in each genus

Figure 7 thumbnail

(click to enlarge)

[14] In Book V on Musical Practice, Chapters 48–52, Vicentino prescribes different divisions for four kinds of non-diatonic whole tones: “chromatic” whole tones written with sharps (e.g., F to G); with flats (e.g., A to B); “natural enharmonic” whole tones (e.g., Ḟ to Ġ); and “chromatic enharmonic” whole tones (e.g., Ġ to Ȧ.)(23) A bewildering array of possibilities ensues, but an unstated intricate pattern emerges: just as for the natural whole tone, which can be divided into four steps in two ways ([, , , , ] or [, , , , ), Vicentino permits these other whole tones to be subdivided into four steps in two ways, depending on where the single major diesis is placed among the three minor dieses. Figure 5 entabulates the details and Figure 6 shows the whole tone divisions graphically.(24) The rule we can deduce for determining the arrangement of dieses is as follows: the pitch that is skipped over in the division, i.e., the pitch that falls at the midpoint of the major diesis, is the natural pitch in one of the two legal placements, and, in the other, it is whichever of the sharp or flat is closer to an end point of the whole tone being subdivided. This ensures there are the maximum number of visibly enharmonically inflected pitches—i.e., pitches from the upper manual of the archicembalo, notated with a dot—in each of the five kinds of whole tone when they are divided enharmonically; we should never skip over a dotted note in the enharmonic division of a whole tone, regardless of its boundary pitches. It implies that the pattern of pitches on the keys of the upper or lower manuals of the archicembalo plays an important role for Vicentino: the design of the instrument, it should be clear, has a tangible influence on his enharmonic compositional theories.

Species

[15] The most important theoretical innovation Vicentino made in L’Antica musica was to combine the nuanced intervallic structures of the Greek genera—not generally considered part of modern compositional practice by his contemporaries—with the permutational relationships that characterize the species of 4ths and 5ths, a fixture of medieval and Renaissance music theory. Figure 7 shows how this merging of two systems is accomplished in the case of the 4th. Key to Vicentino’s generalization of the species to other genera are first, his retention of the same abstract pattern of step sizes for a given species—for example, aba for the first species of 4th—and second, his replacement of the smallest intervals in the diatonic arrangement by the largest in the new genus, and vice-versa. What the first species of 4ths in all three genera have in common, then, is that the step interval that is substantially different from the others in that genus—the different step interval being the semitone (diatonic), the minor 3rd (chromatic), or the major 3rd (enharmonic)—occurs second in the sequence of step sizes within the 4th, surrounded by the genus’s two intervals that are of equivalent (not necessarily identical) size. In the second species of 4th the unique interval is in the lowest position, and in the third species, it is in the highest position. This all makes for a conveniently tidy way of mapping species from one genus to another, but Vicentino’s stated reasons for exchanging large and small steps when passing from the diatonic genus to the others have more to do with respecting the contrasting aesthetic qualities of the genera. He writes of the chromatic genus:

The chromatic fourth has all its steps placed differently and contrary to the sound of the diatonic steps. For the diatonic steps produce a harsh sound, whereas the chromatic steps restore a gentle sound to the ear. . . . Where there were small diatonic steps, there are now placed large steps on the same degree in the chromatic fourth. And where there were large diatonic steps, I now place small chromatic ones. (186)(25)

[16] As can be seen in the table, the two identical whole tones of the diatonic genus have been replaced by the non-identical major and minor semitones of the chromatic genus.(26) The sizes of semitone required in the species of chromatic 4th depend on the spelling of the “incomposite trihemitone”, the step in the chromatic genus that spans three semitones. Spelling the trihemitone as an augmented 2nd (i.e., seven steps of the 31-tone scale) would have required the other two steps to both be major semitones, and allowed the 4th to be written using each letter name only once—for example, B–C–D–E—but Vicentino’s practice is to use a minor 3rd (i.e., eight steps of the 31-tone scale), whose complement in the tetrachord is a balanced pair of major and minor semitones. (27)

[17] Similarly, in the three enharmonic species of 4th shown in the right-hand column of Figure 7, the whole tones of the diatonic are transformed into major and minor enharmonic dieses, and the semitone step is transformed into an incomposite ditone. The incomposite ditone usually appears as a major 3rd, but is occasionally spelled as a diminished 4th narrowed by an enharmonic dot, for example Ȧ to D. This interval, of 10 degrees of the 31-tone scale, should be understood as equally legitimate a major 3rd as one spelled conventionally. Respelling the upper pitch Ċ would have made the interval appear less unusual, but Vicentino almost always sticks to a “one pitch, one spelling” system—and this particular pitch, 1/5th of a tone above C, is named D, whatever its harmonic context.(28)

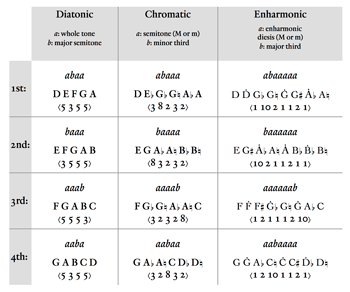

Figure 8. The four species of 5th in each genus

Figure 8 thumbnail

(click to enlarge)

[18] Greek writers on musical scales did not directly explore the subdivision of the 5th as a structural scalar component; the composite 5th arose only as the combination of a structural tetrachord plus the tone of disjunction. Vicentino, following the practice of more recent theorists, wished to include the 5th on equal footing to the 4th in his theoretical system. But incorporating the medieval species of 5th in the context of the non-diatonic genera presents a particular difficulty: there is no obvious way to map the patterns of step sizes in a diatonic 5th to the other genera. For example, the first-species 5th in the diatonic genus has the ascending pattern abaa—a whole tone, a semitone, then two more whole tones. But it is not possible to find a combination of the intervals characteristic of the chromatic genus—the minor 3rd and the major and minor semitones—that will sum to a perfect 5th consisting of four steps, as occurs in the diatonic. That sum will require an extra semitone, and thus a perfect 5th consisting of five steps: a minor 3rd and four semitones. Such being the case, Vicentino must have decided that the step pattern that most resembles the diatonic first species abaa is the pattern that retains the unique interval in second position: abaaa. Likewise, the second species of 5th retains the unique interval in first position: baaabaaaa, and the fourth chromatic 5th retains the unique interval in last position: aaabaaaab. Finally the pattern of the third diatonic 5th, aaba, could be interpreted in two different ways resulting in two different chromatic patterns: we could think of it either as “the unique interval is in the third position,” or as “the unique interval is in the second-to-last position.” Vicentino chose the former interpretation, and so his third chromatic 5th has the pattern aabaa with the minor 3rd in the central position.(29) The table in Figure 8 shows the chromatic species of 5th in the central column. As with the chromatic 4ths, the species of 5th are not strict rotations of one another when we distinguish major semitones from minor. Rather than accept the conclusion that any arrangement is permitted, we can account for Vicentino’s decisions about which semitones to place where by the following implied rule for constructing chromatic 5ths: prefer major semitones above natural pitches (i.e., use pitches written with a flat) to maximize contrast with the enharmonic.

Figure 9. Unused permutations of intervals comprising the 5th in the chromatic and enharmonic genera

Figure 9 thumbnail

(click to enlarge)

[19] The species of 5th in the enharmonic genus are even more problematic than in the chromatic: ideally, the three whole tones and one semitone of the diatonic could be transformed straightforwardly into three enharmonic dieses and a ditone—unfortunately, though, these four steps do not sum to a perfect 5th. Vicentino’s enharmonic 5ths, then, use a total of six dieses and one ditone; the resulting templates are shown in the right-hand column of Figure 8 along with their pitch realizations.(30) The fourth species of enharmonic 5th is constructed, as was the case in the chromatic genus, so as to have its unique interval in third position rather than in second-to-last position, which—with so many trailing dieses required to make up the 5th—means its step pattern aabaaaa appears quite dissimilar to that of its diatonic cousin aaba. The patterns aaabaaa, aaaabaa and aaaaaba do not occur in Vicentino’s account of the species of 5th.(31) I have included them in Figure 9, with corresponding pitch realizations, for the sake of being able to see a complete set of permutations.

[20] As we did for the chromatic 5ths above, we can infer some preference rules that would account for Vicentino’s choices in distributing the enharmonic dieses, whose quality—major or minor—is not specified by a pattern such as abaaaaa. For instance, depending on whether the first interval is taken as a minor or major diesis, the pattern abaaaaa could have begun either D–Ḋ–G or D–D–Ġ. The following ordered set of preferences will lead to Vicentino’s particular set of enharmonic 5ths; where they conflict with each other, the earlier rule takes precedence:

  1. Prefer a minor over a major diesis at the beginning.
  2. Prefer to place the major 3rd such that one or both of its endpoints fall on natural notes.
  3. Divide a whole tone that lies between natural notes according to the “four-fold” rule of Section 4 above.
  4. Prefer B over A; otherwise, given a choice between writing a flat or a sharp pitch, prefer the one that does not appear in the corresponding chromatic 5th.(32)

Such a set of rules obviates the need to ascribe to Vicentino the intention that all permutations of major and minor dieses should be equally valid.

[21] Now, it is true that in one passage Vicentino indicates that composers may consider other possibilities for distributing the dieses. In the discussion of the third enharmonic species of 5th he writes: “It begins its ascent with six steps of major and minor dieses. The first step is minor, the second minor, the third major, the fourth minor, the fifth minor, and the sixth major. However, a composer may at his good pleasure arrange the order of these major and minor dieses, as well as the major and minor semitone, in any way he sees fit” (200).(33) Here the extended run of dieses occurs between the bounds of a natural whole step, which we already know can be divided different ways (see the discussion of the “four-fold rule” in Section 4): the primary division of a natural whole tone into major and minor semitones can be made in two ways by using a sharp or flat, each way requiring a particular subdivision into major and minor enharmonic dieses. I believe Vicentino wrote “in any way the composer sees fit” as shorthand for “in any of the ways previously explained as admissible that the composer sees fit,” and he never intended the reader to break the “immutable rule” of Book I, Chapter 11, that requires a minor diesis to be the first encountered, whether ascending or descending, when a natural whole tone is to be enharmonically subdivided (54). Below when we encounter the octave species we shall find Vicentino making use of this very restricted freedom to slightly redistribute the dieses within the natural whole tone, as he rewrites the first 5th so the whole tone G–A is divided at A rather than G.

[22] Armed now with three species of 4th and four species of 5th in each genus, Vicentino is ready to proceed to the octave species resulting from their combinations—but which combinations should he use? In the diatonic genus there was of course an existing set of arrangements of 4ths and 5ths long accepted by musicians: the seven diatonic octave species commonly enumerated by theorists since Boethius. Vicentino cannot simply present these as axiomatic, however—he needs to reverse-engineer a system of constructing them, in order to be able to generalize the system to the other genera, which have no conventional lists of octave species of their own.(34) There must be seven species, which he derives from the three species of 4th and four species of 5th by allowing each to begin an octave species, paired with its corresponding 5th or 4th placed conjunctly above, finally recycling the first 4th to accompany the fourth 5th in the absence of a fourth 4th (138). The resulting sequence of combinations is as follows:

First 8ve (A–a): first 4th placed below first 5th
Second 8ve (B–b): second 4th placed below second 5th
Third 8ve (C–c): third 4th placed below third 5th
Fourth 8ve (D–d): first 5th placed below first 4th
Fifth 8ve (E–e): second 5th placed below second 4th
Sixth 8ve (F–f): third 5th placed below third 4th
Seventh 8ve (G–g): fourth 5th placed below first 4th



[23] While these seven octaves would have been familiar to all musicians, Vicentino’s derivation of them is original in that it appears to make the octave species dependent on, and therefore subordinate to, the species of 4ths and 5ths. His explanation obscures the fact that many other arrangements of these 5ths and 4ths might be possible; should we pursue this line of thinking we find that of the 24 implied combinations (three species of 4th × four species of 5th × two ways of ordering each combination), just 12 result in familiar diatonic octave species.(35) Of the remaining combinations of diatonic 4ths and 5ths, eight result in modes of the ascending melodic minor (e.g., first 4th placed below a third 5th) and four result in modes of a “whole-tone plus one” collection, Forte 7-33 [012468a] (e.g., second 4th placed above a third 5th).(36)

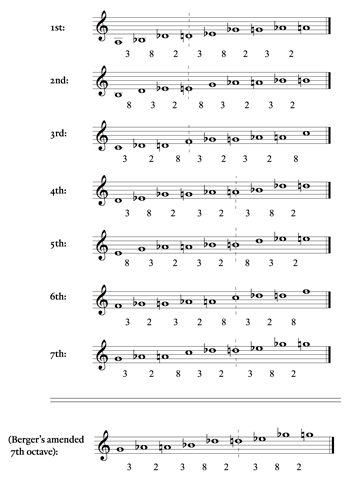

Figure 10. Vicentino’s seven chromatic octaves

Figure 10 thumbnail

(click to enlarge)

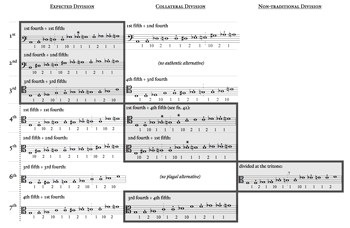

Figure 11. Vicentino’s enharmonic octave species

Figure 11 thumbnail

(click to enlarge)

[24] Having shown how to construct the diatonic octave species, Vicentino can now move on to the chromatic species, following an analogous procedure. For example, the first chromatic octave (A–a) should conform to the pattern of the first diatonic octave, and is thus formed by the first chromatic 4th below the first chromatic 5th. The result is a scale of eight notes: A B D D E G G A (A).(37) The seven chromatic octaves are shown in Figure 10. If we temporarily consider the major and minor semitone equivalent, we find that six of Vicentino’s seven chromatic octaves are rotations of one another: representing steps of a semitone by a and steps of a minor 3rd by b, the first six are all rotations of aaaabaab, where the semitones appear in groups of four and two. (Two of the eight possible rotations of this 4+2 scale do not appear.) The seventh chromatic octave presents a scale distinct from the others: aabaaaba, whose semitones are arranged instead in groups of 3+3.(38) Performing the same systematic exploration of the combinations of Vicentino’s chromatic 4ths and 5ths that we did for the diatonic genus, we find that of the 24 possible arrangements, 10 result in octave species whose semitones are grouped as 4+2, six as 5+1, four as 3+3, and four as 6+0 (i.e., the two minor 3rds are adjacent to each other). Vicentino does not consider any arrangements beyond the seven shown in Figure 10.

[25] When it comes to the enharmonic octaves, Vicentino’s process established in the other genera breaks down in the fourth octave and never recovers. Figure 11 shows the details, with Vicentino’s octaves as they are given in L’Antica musica in the highlighted cells of the table.(39) In the left-hand column are the seven species as they would have been constructed following the procedure for the diatonic and chromatic: three plagal and four authentic species. None of Vicentino’s last four combinations of enharmonic 4ths and 5ths correspond in the expected way to the diatonic and chromatic genera, whose fourth through seventh octave species were constructed with a 5th below a 4th. But the last four enharmonic octaves as given by Vicentino can be explained, for the most part, in another way. The D–d, E–e and G–g diatonic octaves have alternative plagal descriptions: E–e, for example, could be construed as the second diatonic 4th below the first diatonic 5th, instead of the second 5th below the second 4th. Such plagal descriptions for the diatonic octaves on D, E, and G, when transformed into the enharmonic, are shown in the central column and correspond quite closely to Vicentino’s suggestions.(40) It appears, then, that without mentioning the change in strategy, he has employed exclusively the plagal descriptions of the diatonic octave species as the basis of his generalization to the enharmonic, instead of the expected authentic descriptions in the case of the fourth, fifth, and seventh octave.(41) One consequence of this decision—probably a desirable consequence, given Vicentino’s predilection for variety—is that these octaves are thereby given contrasting structures to those of the odd-numbered modes, discussed in the following section.(42)

[26] How, though, ought we to explain what surely must be errors in the sixth octave? The F–f octave is divided neither plagally nor authentically: neither a B nor a C is present.(43) If this is a mistake, what should the sixth octave have been? The sixth octave shown in the left-hand column of Figure 11—the structure that would have resulted if Vicentino had followed the same process as he did for the other genera—is an authentic division, with a third-species 5th below a third-species 4th. But the other enharmonic octaves in Vicentino’s series are all plagal, with the 4ths and 5ths lifted more or less correctly from the alternate plagal descriptions of the corresponding diatonic octave species. If Vicentino wanted to use a plagal diatonic model the difficulty is obvious: there is no plagal division of an F–f octave using only natural notes, as its lower 4th is augmented. And so perhaps his division at B, with what appear to be enharmonic species of the augmented 4th below and of the diminished 5th above, is meant to parallel the diatonic phenomenon of an illegitimate plagally divided F–(B)–f octave.(44)

[27] These seven enharmonic octaves form quite a heterogeneous set. Recall that the seven diatonic octaves were rotations of one another; likewise, six of the seven chromatic octaves fell into two groups of three, each group internally related by rotation. Here, though, only two of the seven enharmonic octave species are related to each other by rotation: the third and seventh octaves, when appropriately rotated, produce the same series of step intervals (in fact the two octaves have exactly the same pitch-class content). When we apply the level of scrutiny of the last few paragraphs to Vicentino’s octave species, it is easy to have our impression reinforced that Vicentino is always thinking of pitch structures at their specific transpositional level rather than as abstract strings of intervals—these are apparently not structures he finds it natural to transport indiscriminately around the 31-tone system, even if the circular nature of the system makes such transpositions conceivable in theory.

Mode

[28] The octave species are not the final word in theoretical pitch structures in L’Antica musica. Vicentino goes on to discuss the eight modes of each genus; again, the rationale for setting out these modes is explicitly concerned with compositional variety, and he invokes the equal status he wishes the modes of the chromatic and enharmonic to share with the diatonic:

Today one should not be astounded by such inventions. For if the diatonic genus has opened the way to composing the eight diatonic modes, why should the chromatic and enharmonic genera not have their own eight modes to serve each genus? When a composer has the freedom to write in the first mode of the diatonic or of the chromatic or of the enharmonic orders, he will have compositional resources of such richness, so many steps and various species adorned with so varied a set of procedures, that his compositions, on account of their great diversity of mixed steps, will be marvelous things to hear. (205–6)

Figure 12. The eight modes of the enharmonic genus

Figure 12 thumbnail

(click to enlarge and listen)

[29] Like most other theorists of his time, Vicentino notes there is one more mode than octave species.(45) His enumeration follows the standard pattern of paired authentic and plagal structures on each of the finals D, E, F, and G. Melodic examples are provided for the eight modes in each genus, but here I shall discuss the enharmonic modes only. They appear below in Figure 12 and may be heard in the embedded audio files, performed using solmization syllables assigned to the pitches of the mode following Vicentino’s solmization system for the enharmonic genus.(46) For the odd-numbered modes (i.e., authentic), the examples share the following approach: they ascend stepwise to cover their entire octave range using the appropriate species of 5th and 4th, then return relatively rapidly to their final, via leaps and enharmonic decoration of the final, the 5th, and other suitable turning points.(47) In the portion of each modal example that follows the completion of the authentic ambitus, Vicentino usually treats the line quite freely, using pitches from outside the mode as contrast. For example, the third mode initially covers its range using second-species 5ths and 4ths, whose large ditone step is at the bottom. But once the example has attained the modal final at the top of its octave span, the high E is decorated with an enharmonic upper-neighbor figure, a filled-in semitone that is not properly part of the mode. Immediately afterwards, the fifth degree, B, is similarly decorated, creating an upper tetrachord B–Ḃ–C–E, whose small steps clustered at the bottom of the tetrachord contrast with the “correct” second-species tetrachord for that mode, B–D–Ė–E, whose small steps are clustered at the top. A similarly free approach to decorating the final and fifth degrees can be seen in the example for the fifth mode. Here the modal 4th and 5th in ascent are third species, characterized by the ditone at the top. But the decoration of the final at the top of the range, in combination with the leap from the 5th, produces a second-species upper tetrachord C–E–Ė–F whose ditone lies at the bottom.

[30] The plagal modes are presented even more freely. The second mode begins not on its final D, but ascends from A through A. The fourth and eighth modes, before ascending to the top of their range, set out downwards from their final—although the eighth mode does not include the expected first-species 4th (G–G–Ḋ–D), instead employing a second-species 4th transposed to D–G. The example for the fourth mode fails to end on the expected final—in all likelihood Vicentino accidentally omitted a final E; most of the modes end with a final–fifth–final figure, here truncated at the fifth. The sixth mode contains no real lower tetrachord at all, simply skipping between the C at the bottom of its ambitus and a final F decorated with a lower-neighbor Ė (a pitch which would not figure in the expected third-species 4th).(48)

Figure 13. Examples of “unruly” division of the 4th of 5th

Figure 13 thumbnail

(click to enlarge)

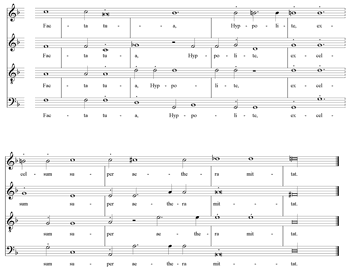

Figure 14. The ending of Vicentino’s motet Musica prisca caput

Figure 14 thumbnail

(click to enlarge and listen)

[31] No sooner have all these modes and species been set out so laboriously for the reader than Vicentino goes on to exhort musicians to use instead “mixtures among the species of the three genera, so that every student can use in his music every sort of step found in the three genera. Just as it is possible to write eight pure modes in each of the diatonic, chromatic, and enharmonic systems, so it is also possible to compose steps mixed from the species and systems of the genera” (202). He laments that other composers “do not understand how this mixture of various steps and leaps, accompanied gracefully by consonances, can make a fine harmonic consensus. Nor do they realize that the more the steps are altered in a composition, the more attentive and moved will be the listener, in contrast to a composition that proceeds by always arranging its steps and leaps in one way” (203). He gives several examples of 4ths and 5ths that have been subdivided according to these “unruly” (confusi) steps, pointing out that despite the conflicting genera within their boundaries, they remain true 4ths and 5ths. His examples (Maniates’ exx. 48.1–48.3) are reproduced here in Figure 13, annotated with the number of fifth-tones between adjacent notes.(49) A passage from the very end of the composition Musica prisca caput (Figure 14) illustrates a beautifully unruly division of the ascending perfect 4th, A–D in the soprano, involving 11 distinct pitches in a very similar arrangement to the fourth unruly division of the ascending 4th shown in Figure 13.(50) The A–D 4th is initiated by the tenor’s A before being transferred to the soprano as she moves to Ȧ; the soprano line has been isolated for the listener in the second audio file.(51)

Composing in the genera

Figure 15. Vicentino’s chromatic composition Hierusalem

Figure 15 thumbnail

(click to enlarge, see the rest, and listen)

Figure 16. Chromatic species in the second tenor part of Hierusalem

Figure 16 thumbnail

(click to enlarge)

[32] If we asked a modern musician to create a composition using a genus, we might expect him or her to treat the genus as a source collection from which to draw all or almost all pitches, either in one voice or in all voices. In this approach, writing “in the enharmonic” would be analogous to writing in, say, an octatonic mode: there would be a fixed gamut of admissible notes for a piece, or a section of a piece. Clearly, though, this is not what Vicentino has in mind. The composition in Figure 15, Hierusalem, is given in L’Antica musica explicitly as an example of pure chromatic writing; in fact the opening of this piece is the only passage in Vicentino’s surviving compositions that convincingly demonstrates a clear relationship to any of the generic species described at such length in the treatise. The imitative entries spell out chromatic species of 4ths, including ascending and descending third-species tetrachords and descending second-species.(52) After the opening section, though, none of the voices are consistent with a single chromatic species for any more than a few notes at a time. Instead, Vicentino’s aim was that each voice be restricted to the intervals available in the chromatic genus: the major and minor semitone and the incomposite trihemitone (minor 3rd).(53) This restriction on intervals will give rise to an unrestricted set of pitches, even in a “pure chromatic” composition, as eventually any pitch (uninflected enharmonically) may be reached from any other via some chain of chromatic intervals. Figure 16 demonstrates an analysis of the pitches of the second tenor line of Figure 15 that remains “in the chromatic genus” by continually modulating from one chromatic species to another, so that every melodic succession smaller than a 4th is interpreted as a step interval of a chromatic species of 4th or 5th, suitably transposed.(54) The segmentation suggested here after the initial imitative section should not be taken as indicative of any real succession of species of 4ths and 5ths; there are many equally valid ways of parsing the voice into chromatic segments. The point is that some such modulation between chromatic species must be implicitly present if we are to understand each melodic interval as functioning as a single step of some chromatic species, and not as part of one of the “unruly” divisions that dominate the non-pure chromatic and enharmonic works.

Figure 17. Successions of major triads wholly in the chromatic genus

Figure 17 thumbnail

(click to enlarge)

[33] This constraint on melodic succession renders the harmonic aspect of composition quite difficult when applied to multiple voices simultaneously. Consequently the range of harmonic successions in Figure 15 above is quite impoverished compared to what we might expect to encounter in chromatic works by roughly contemporaneous composers like Lassus or Gesualdo. Although surprisingly many triadic successions are possible in abstract—despite the restriction that voice-leading may only contain intervals proper to the chromatic genus—most of these successions are quite awkward to pull off, requiring voice-crossings, anti-parallel leaps, forced 6 4 positions, or other infelicities. (In a five-part texture, which brings the possibility of voices dropping in and out, the voice-leading would be somewhat more manageable.) Figure 17 shows all the possibilities of root progressions of up to an augmented 4th between two major triads; their retrogrades provide models of root progressions by intervals from a diminished 5th up to a diminished 8ve. The only successions (or their retrogrades) that appear in Hierusalem—all after the opening imitative section—are marked with an asterisk; they include root motions by a major (diatonic) semitone, a minor 3rd, and a 4th/5th (i.e., root motions by a characteristically chromatic interval, a consequence of Vicentino’s almost complete reliance on root-position harmonies).

Figure 18. Vicentino’s composition Soav’e dolc’ardore

Figure 18 thumbnail

(click to enlarge and listen)

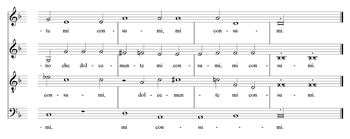

Figure 19. Ending of Vicentino’s composition Dolce mio ben

Figure 19 thumbnail

(click to enlarge and listen)

[34] The situation is worse still in the enharmonic. A moment’s experimentation will show that it is possible to write very few triadic successions whose voice-leading comprises exclusively major and minor enharmonic dieses, major 3rds, and 4ths and 5ths.(55) And indeed each of the voices in Vicentino’s example of enharmonic composition, Soav’e dolc’ardore (Figure 18), includes intervals foreign to the enharmonic genus. What, then, can he have meant by describing Soav’e dolc’ardore as enharmonic, rather than as a mixture of the genera—which is how he describes other pieces that feature some enharmonic inflection but are not wholly restricted to melodic intervals from the enharmonic genus? I believe the answer is that in this excerpt, every succession of triads involves at least one voice that moves by an enharmonic diesis (major or minor), as demonstrated in Figure 18.(56) Thus the excerpt necessarily belongs to the enharmonic genus, since melodic motion by enharmonic dieses cannot occur in either the chromatic or the diatonic.(57)

Conclusion

[35] In essence, by invoking the possibility of mixing genera or species at will, Vicentino has allowed himself to write any melodic line conceivable—as long as it is “accompanied gracefully by consonances, [making] a fine harmonic consensus,” i.e., triadic harmony (203).(58) This certainly removes some of the explanatory power that might otherwise have devolved to the genera in any analytic account of the surviving enharmonic compositions, and spending any time with these works is sufficient to convince oneself that Vicentino’s enharmonic inflections generally appear to be carried out with no obvious relationship to a framework of generic species. Figure 19 illustrates the concluding measures of the piece Dolce mio ben. After a lengthy passage entirely without enharmonic inflections the final sonority hovers insistently, one fifth-tone higher than the expected B major, unyielding to “gravity” for the duration of a full two breves. The aural effect is startling; capricious, even. But any lack of consistency in Vicentino’s application of enharmonic inflection cannot detract from the sonority’s undeniable beauty, bound up with the vowel sound (a similarly effective raising of pitch occurs on the other long “u” vowel in this piece, in the word “lumi”), nor from the moment’s arresting portrayal of the narrator being consumed (sweetly, by love—more precisely, by the sweet light of his lover’s eyes).(59)

[36] Given the lack of recognizable generic segments of any significant length in the compositions, and the extent to which we must invoke mixture of genera and frequent modulation of species in order to fit melodic lines to genera at all, it is reasonable to ask why Vicentino devoted so much attention in his treatise to the apparatus of classifying genera and species. We might simply chalk it up to the music theorist’s irresistible urge to systematize: Vicentino the systematic theorist appears not to have wished to allow Vicentino the unruly composer sole responsibility for his reboot of the Greek genera. Another possible contributing factor is the prestigious pedigree conferred by a theoretical system akin to that of Boethius; Vicentino’s system even surpasses Boethius’s in its greater complexities. By placing his compositional innovations in that particular intellectual lineage, Vicentino ensured his writing, and hopefully his compositions too, would be widely read and discussed.

[37] In a follow-up to this article I shall look at other ways to approach Vicentino’s 31-tone music, ways that are not solely focused on the genera and species that form the basis of the theoretical approaches of L’Antica musica. The pitch systems of L’Antica musica and their complex set of interrelationships differ from anything in the theoretical writings of Vicentino’s contemporaries, in that they are largely synthetic: his pitch systems do not attempt to codify an existing musical practice that has evolved naturally over many generations, nor do they simply transmit or reexamine received wisdom from previous theorists. In this respect L’Antica musica is startlingly modern: it is experimental compositional theory that, despite the treatise’s title, owes less to antiquarianism and more to avant-gardism; surely there is no sixteenth-century musician of more radical inventiveness in the area of melodic materials.(60) Vicentino certainly anticipates antipathy towards his unfamiliar notions, complaining that:

some singers and musicians, who believe themselves knowledgeable, show their amazement to everyone whenever they encounter a novelty in musical signs that has been introduced for the sake of some sort of consonance. Straight away they begin by saying, ‘It is not good, it is not easy to sing,’ and conclude that ‘it will not endure,’ citing the example of past composers to prove that if the practice in question were good those composers would have used it. (35)

[38] This appraisal of the likelihood of acceptance for his novel procedures was sadly too accurate, as borne out in these words from a detractor, Vincenzo Galilei, written after Vicentino’s death:

Don Nicola had some students, who, while he played, especially in the enharmonic genus, sang this sort of music composed by him. He had this music performed in all the principal cities of Italy and I have heard it often, in various times and places. Let it be the sign of whether this music pleased or not that after his death it was practiced neither by his students nor by anyone else. . . . If by misfortune one of the singers lost his way while singing, it was impossible to put him back on the right track. Thus this kind of music necessarily required an instrument that could guide the voices of the singers through unknown tracts (not to say through precipitate cliffs), not letting them proceed according to the nature of singing and through a straight path. These particular sounds of the enharmonic . . . could only be unpleasant to the senses. . . . After Don Nicola’s death the music was not sung any more; the instruments were no longer played in that manner and his students completely abandoned the enharmonic, not finding anyone who wished to listen to it.(61)

[39] I suspect that the easily imaginable difficulties in rendering favorable performances would have played the greatest role in the negative reactions to Vicentino’s musical practice recorded by Galilei and other contemporaries. For my part, having spent some time on producing faithful recordings of the few surviving works, I have found Vicentino’s 31-tone system was certainly able to accommodate beautiful, compelling music—music that is for the most part impossible to recreate outside the 31-tone system. Even if we estimate generously that he may have written as many as a few dozen 31-tone works in his lifetime, Vicentino still could barely have scratched the surface of the possibilities offered in a compositional world of such wealth. I hope this initial investigation, along with the longer excerpts to be presented in the second part of the article, will make it easier to treat the notion of 31-tone music in the sixteenth century not merely as a misguided novelty or an evolutionary dead-end, but as a window briefly opened on a foreign landscape of strange allure and unexpected treasures.
